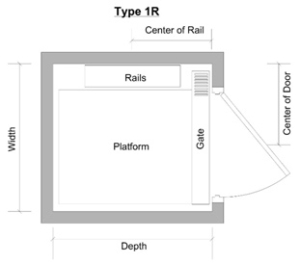

OH 84″CabOH 96″Cab
| Capacity | Width | Depth | Center Rail | Center Door | OH 80″Cab | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| 36×48 | 1000 | 51” | 57” | 29” | 29” | 92” | 104” | 108” | DWG | |
| 36×54 | 1000 | 51” | 63” | 30” | 29” | 92” | 104” | 108” | DWG | |
| 36×60 | 1000 | 51” | 69” | 33” | 29” | 92” | 104” | 108” | DWG | |
| 40×54 | 1000 | 55” | 63” | 30” | 33” | 92” | 104” | 108” | DWG |
* All dimensions are finished dimensions after sheet rock
* OH is the abbreviation for overhead distance. This is the measurement from the floor level of the top landing to the ceiling of the hoistway.

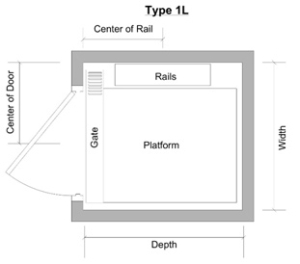

| Capacity | Width | Depth | Center Rail | Center Door | OH 80″Cab | OH 84″Cab | OH 96″Cab | |||
|---|---|---|---|---|---|---|---|---|---|---|
| 36×48 | 1000 | 51” | 57” | 29” | 29” | 92” | 104” | 108” | DWG | |
| 36×54 | 1000 | 51” | 63” | 30” | 29” | 92” | 104” | 108” | DWG | |
| 36×60 | 1000 | 51” | 69” | 33” | 29” | 92” | 104” | 108” | DWG | |
| 40×54 | 1000 | 55” | 63” | 30” | 33” | 92” | 104” | 108” | DWG |
* All dimensions are finished dimensions after sheet rock
* OH is the abbreviation for overhead distance. This is the measurement from the floor level of the top landing to the ceiling of the hoistway.

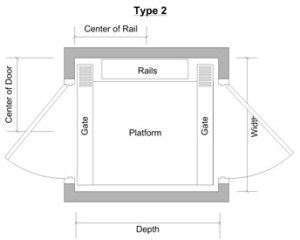

| Capacity | Width | Depth | Center Rail | Center Door | OH 80″Cab | OH 84″Cab | OH 96″Cab | |||
|---|---|---|---|---|---|---|---|---|---|---|
| 36×48 | 1000 | 51” | 54” | 27” | 29” | 92” | 104” | 108” | DWG | |
| 36×54 | 1000 | 51” | 60” | 30” | 29” | 92” | 104” | 108” | DWG | |
| 36×60 | 1000 | 51” | 66” | 33” | 29” | 92” | 104” | 108” | DWG | |
| 40×54 | 1000 | 55” | 60” | 30” | 33” | 92” | 104” | 108” | DWG |
* All dimensions are finished dimensions after sheet rock
* OH is the abbreviation for overhead distance. This is the measurement from the floor level of the top landing to the ceiling of the hoistway.

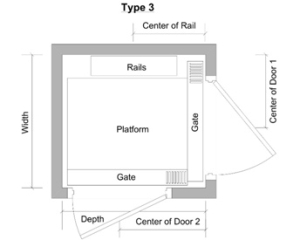

| Capacity | Width | Depth | Center Rail | Center Door1 | Center Door2 | OH 80″Cab | OH 84″Cab | OH 96″Cab | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 36×48 | 1000 | 54” | 57” | 29” | 29” | 34” | 92” | 104” | 108” | DWG | |
| 36×54 | 1000 | 54” | 63” | 30” | 29” | 39” | 92” | 104” | 108” | DWG | |
| 36×60 | 1000 | 54” | 69” | 35” | 29” | 45” | 92” | 104” | 108” | DWG | |
| 40×54 | 1000 | 58” | 63” | 30” | 33” | 39” | 92” | 104” | 108” | DWG |
* All dimensions are finished dimensions after sheet rock
* OH is the abbreviation for overhead distance. This is the measurement from the floor level of the top landing to the ceiling of the hoistway.
