Passenger Holeless

DRAWINGS

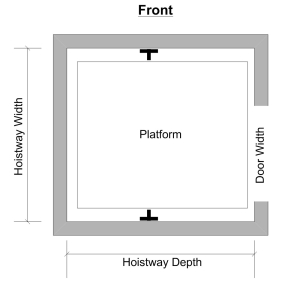

CapacityDoor Type and WidthHoistway Size Wx DClear inside W x D
Single Stage Jack
21001-SP 36″7’4″x5’10”5’8″x4’3″PDFDWG
25001-SP 42″8’4″x5’10”6’8″x4’3″PDFDWG
30001-SP 42″8’4″x6’3″6’8″x4’8″PDFDWG
35001-SP 42″8’4″x6’11”6’8″x5’4″PDFDWG
3500ST1-SP 42″8’10″x6’11”7’2″x5’4″PDFDWG
3500H2-SP 42″6’8″x9’3″5’0″x7’4″PDFDWG
40001-SP 48″9’4″x6’11”7’8″x5’4″PDFDWG
4000H2-SP 48″7’4″x9’4″5’8″x7’11”PDFDWG
4500H2-SP 48″7’4″x10’1″5’8″x8’2″PDFDWG
5000H2-SP 48″7’6″x10’7″5’8″x8’8″PDFDWG
Two Stage Jack
21001-SP 36″7’4″x5’10”5’8″x4’3″PDFDWG
25001-SP 42″8’4″x5’10”6’8″x4’3″PDFDWG
30001-SP 42″8’4″x6’3″6’8″x4’8″PDFDWG
35001-SP 42″8’4″x6’11”6’8″x5’4″PDFDWG
3500ST1-SP 42″8’10″x6’11”7’2″x5’4″PDFDWG
3500H2-SP 42″6’8″x9’3″5’0″x7’4″PDFDWG
40001-SP 48″9’4″x6’11”7’8″x5’4″PDFDWG
4000H2-SP 48″7’4″x9’4″5’8″x7’11”PDFDWG
4500H2-SP 48″7’4″x10’1″5’8″x8’2″PDFDWG
5000H2-SP 48″7’6″x10’7″5’8″x8’8″PDFDWG

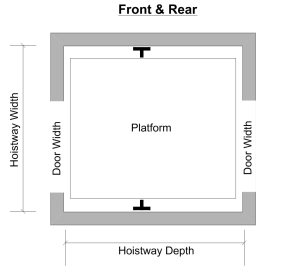

CapacityDoor Type and WidthHoistwy Size WxDClear Inside WxD
Single Stage Jack
21001-SP 36″7’4″x6’8″5’8″x4’4″PDFDWG
25001-SP 42″8’4″x6’8″8’8″x4’4″PDFDWG
30001-SP 42″8’4″x6’11”6’8″x4’7″PDFDWG
35001-SP 42″8’4″x7’8″6’8″x5’4″PDFDWG
3500ST1-SP 42″8’10″x6’11”7’2″x5’4″ PDF DWG
3500H2-SP 42″6’8″x10’3″5’1″x7’4″PDFDWG
40001-SP 48″9’4″x7’8″7’8″x5’4″PDFDWG
4000H2-SP 48″7’4″x10’4″5’8″x7’5″PDFDWG
4500H2-SP 48″7’4″x11’1″5’8″x8’2″PDFDWG
5000H2-SP 48″7’6″x11’7″5’8″x8’8″PDFDWG
Two Stage Jack
21001-SP 36″7’4″x6’8″5’8″x4’4″PDFDWG
25001-SP 42″8’4″x6’8″8’8″x4’4″PDFDWG
30001-SP 42″8’4″x6’11”6’8″x4’7″PDFDWG
35001-SP 42″8’4″x7’8″6’8″x5’4″PDFDWG
3500ST1-SP 42″8’10″x6’11”7’2″x5’4″PDFDWG
3500H2-SP 42″6’8″x10’3″5’1″x7’4″PDFDWG
40001-SP 48″9’4″x7’8″7’8″x5’4″PDFDWG
4000H2-SP 48″7’4″x10’4″5’8″x7’5″PDFDWG
4500H2-SP 48″7’4″x11’1″5’8″x8’2″PDFDWG
5000H2-SP 48″7’6″x11’7″5’8″x8’8″PDFDWG
